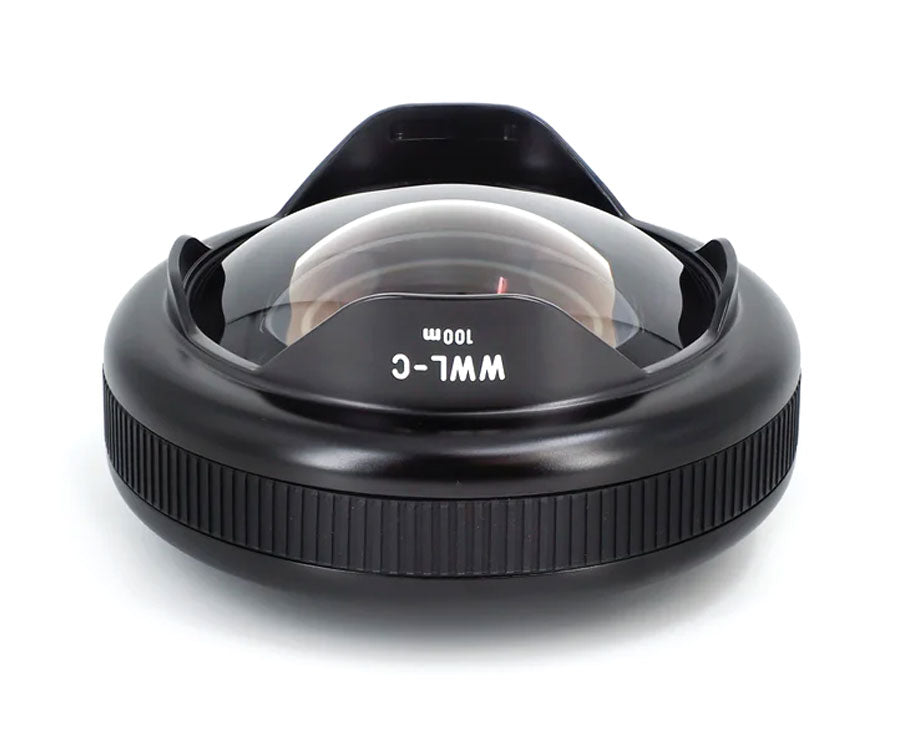

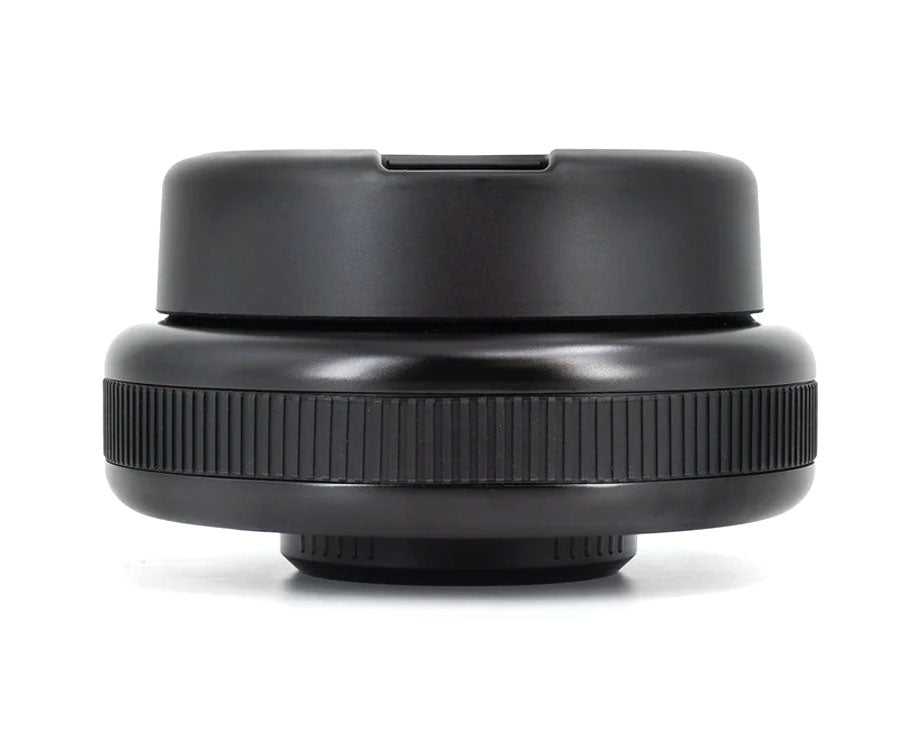

Nauticam WWL-C Wide-Angle Lens
If you shop from the UK, VAT is included in the prices. If you shop from abroad the prices are shown ex tax.
Please note that it is highly likely you will need to pay your local taxes and import duties (no duty to EU) when ordering abroad.
Nauticam wide-angle lens for compact camera housings

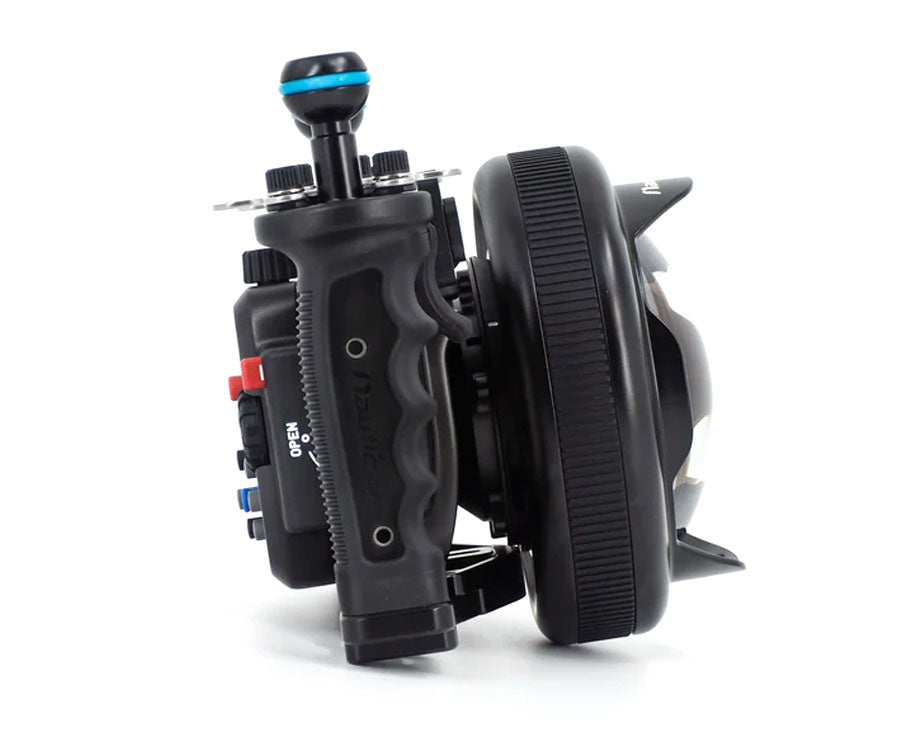

Designed from the ground up to match the compact camera's form factor without sacrificing optical quality, the WWL-C is a powerful addition to not only Nauticam compact housings but also, via an optional adapter, to those from other manufacturers such as the Olympus TG-7 and their PT-059 housing.
The WWL-C is designed around the 24mm focal length which is commonly the widest focal length for fixed-lens compact cameras. While the WWL-1 was also able to deliver 130º field-of-view it required that the camera's lens be zoomed in slightly to 28mm. With the WWL-C, there's no more need to zoom to avoid vignette! This also means that more of the camera's zoom range is available.
The WWL-C is not just for compact cameras!. Many Micro 4/3rds and APS-C sensor cameras can also use this lens. See the Nauticam port charts for the latest info on compatibility with different housings and ports.
Technical Specifications:
- Dimensions: Dia. 156mm x 78mm
- Weight in Air: 1.05kg
- Weight in Water: 0.17kg
- Lens Construction: 4 elements
- Lens Coatings: Anti-reflective on both sides
- Dome Coating: Multi-layer Broad-band Antireflective Coating
- Focal Range: front Element to Infinity
- Maximum Field of View: 130º Underwater (24mm equivalent)
- Mounting System: Bayonet Mount
- Depth Rating: 100m
Included in the box:
- WWL-C Lens
- Port Cover
- Rear Cover
- Microfiber Cloth for Cleaning
- Padded Travel bag
